DAIKEN No. 3 Door Hanger Bearing Double Wheel Flexible Type 3-4WH-BN 1 pc
DAIKEN No. 3 Door Hanger Bearing Double Wheel Flexible Type 3-4WH-BN 1 pc
Regular price
¥8,424
Regular price
Sale price
¥8,424
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

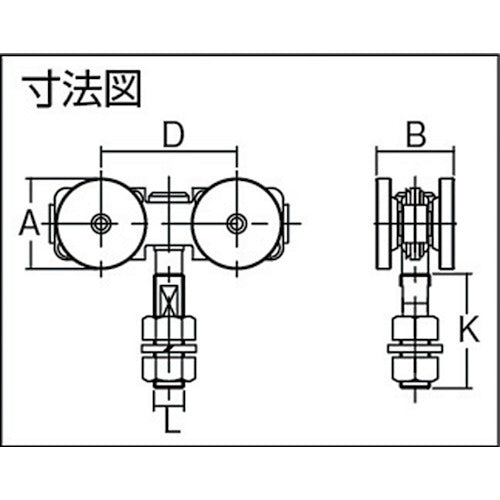

Catalogue number: 3-4WH-BN Features: ●Even if the hanging bolt is tilted, the axle moves flexibly, and all four wheels always receive an equal load. ●Commercially available bearings are used for the bearing section inside the body. Applications: ●For hanging doors. Specifications: ●Product name: Bearing double wheel flexible type ●Compatible rail: No. 3 ●Load capacity (kg/piece): 75 ●A (mm): 50 ●B (mm): 36.2 ●D (mm): 66 ●K (mm): 57 ●L (inch): W5/8 ●Durability standard: 70,000 m (rated load at room temperature) Materials/Finish: ●Main body: Steel ●Door roller: Cast iron
