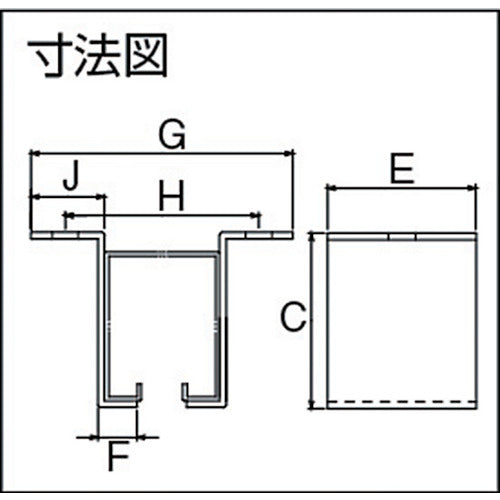

Catalogue number: 3-OBL Features: ● Allows for installation without gaps between the clothes rail and the ceiling bracket. Uses: ● As a bracket for attaching clothes rails to the ceiling of a structure. Specifications: ● Product name: L-shaped ceiling bracket ● Compatible rail: No. 3 ● C (mm): 68 ● Hole diameter (mm): 10 ● Plate thickness (mm): 3 ● E (mm): 48 ● G (mm): 100.0 ● J (mm): 28 ● H (mm): 74.0 ● F (mm): 16 Material/Finish: ● Steel
