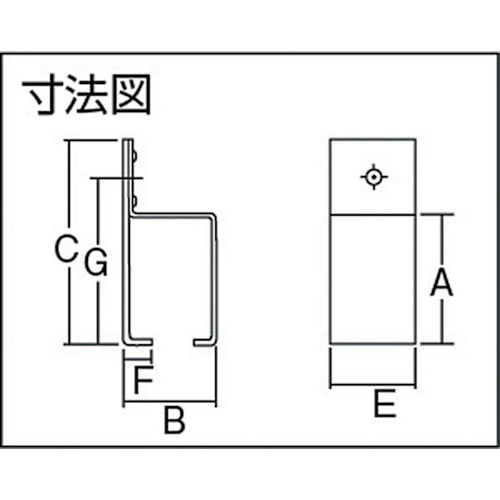

Catalog number: 4-SB Usage: ● As a bracket for attaching a hanger rail to the wall of a structure. Specifications: ● Product name: Horizontal bracket series ● Suitable rail: No. 4 ● A (mm): 87 ● B (mm): 65 ● C (mm): 134 ● Hole diameter (mm): 14.5 ● G (mm): 109 ● F (mm): 18 ● Plate thickness (mm): 4 ● E (mm): 60 Material/Finish: ● Steel
