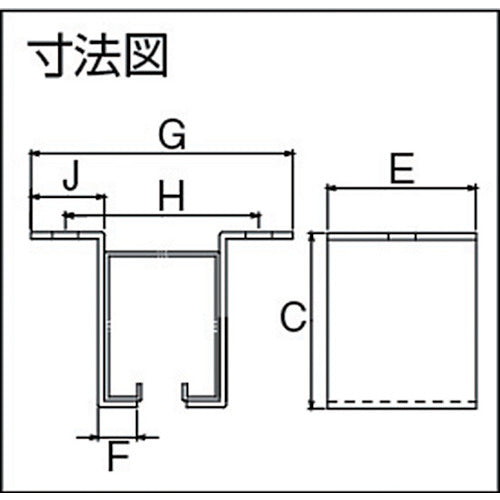

Catalogue number: 4-OBL Features: ● Allows for installation without gaps between the hanger rail and the ceiling bracket. Uses: ● As a bracket for attaching the hanger rail to the ceiling of a structure. Specifications: ● Product name: L-shaped ceiling bracket ● Compatible rail: No. 4 ● C (mm): 85 ● Hole diameter (mm): 14 ● Plate thickness (mm): 4 ● E (mm): 60 ● G (mm): 126.0 ● J (mm): 36 ● F (mm): 20 ● H (mm): 94.0 Material/Finish: ● Steel
