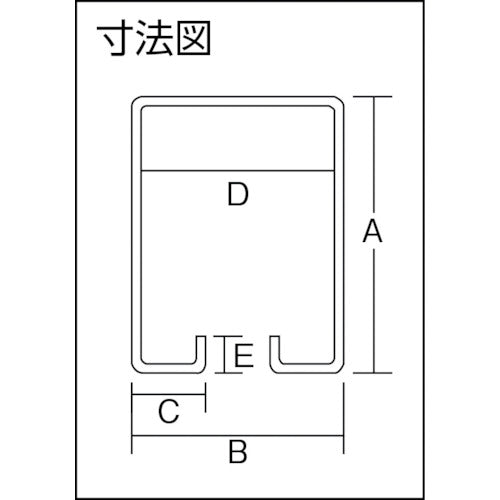

Catalogue number: 5-HR2730 Usage: ●A track for a hoist car to run on the inside. ●Used for suspending and transporting hanger carts. Specifications: ●Load capacity (kg): 250 ●Total length (mm): 2730 ●Plate thickness (mm): 3 ●A (mm): 90.0 ●B (mm): 67.0 ●C (mm): 21.0 ●D (mm): 61.0 ●E (mm): 15.0 Material/Finish: ●Steel ●Powder coated finish Note: ●The load capacity is the value when brackets are installed at 450mm intervals.
