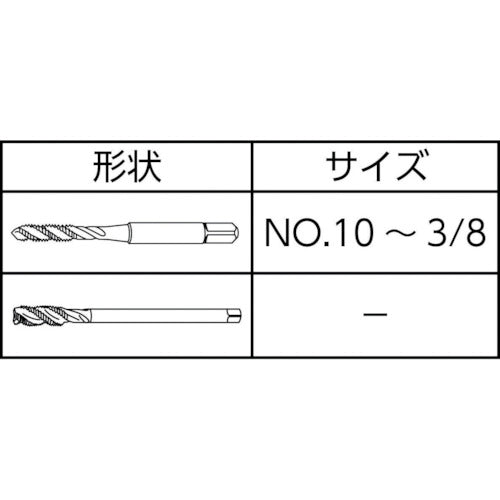

DC SWISS Spiral Tap Z370VS-3 UNF(J)3/8-24 165124 1 piece

Catalog number: 165124 Features: ●Tap tool manufactured for stainless steel. ●VS coating provides long life and high cutting performance. ●Complies with ISO3161 standards except for the lack of roundness at the bottom of the valley, making it ideal for the aviation industry. Applications: ●For blind hole machining. ●Cutting materials: Stainless steel, nickel alloy, pure copper. ●For the aviation industry. Specifications: ●Precision: 3B ●Nominal size: 3/8 ●Pitch (mm): 1.058 ●Thread length (mm): 14 ●Total length (mm): 100 ●Shank diameter (mm): 10 ●Shank square section (mm): 8 ●Pilot hole diameter (mm): 8.6 ●Number of threads: 24 ●Number of engaging threads: 2.5 threads ●Machined thread: Unified thread ●VS coating Material/Finish: ●Powdered high speed steel (HSS-E-PM)
