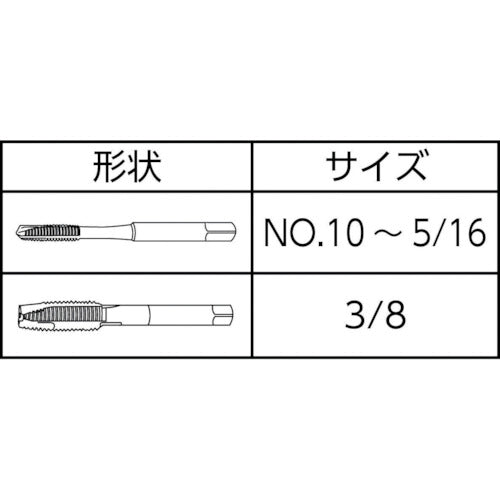

DC SWISS Point Tap S320VS-4 UNF(J)10-32 111814 1 piece

Catalog number: 111814 Features: ●Tap tool manufactured for nickel alloys. ●Complies with ISO3161 standards except for the lack of rounding at the bottom of the valley, making it ideal for the aviation industry. Applications: ●For through hole machining. ●Workpiece material: Nickel alloy (>850 <1150 N/m［［M2］］), carbon steel, stainless steel. ●For the aviation industry. Specifications: ●Precision: 3B ●Nominal size: NO.10 ●Pitch (mm): 0.794 ●Thread length (mm): 15 ●Total length (mm): 70 ●Shank diameter (mm): 6 ●Shank square section (mm): 4.9 ●Pilot hole diameter (mm): 4.15 ●Number of threads: 32 ●Number of engaging threads: 4 ●Machining thread: Unified thread ●VS coating Material/Finish: ●Powdered high speed steel (HSS-E-PM)
