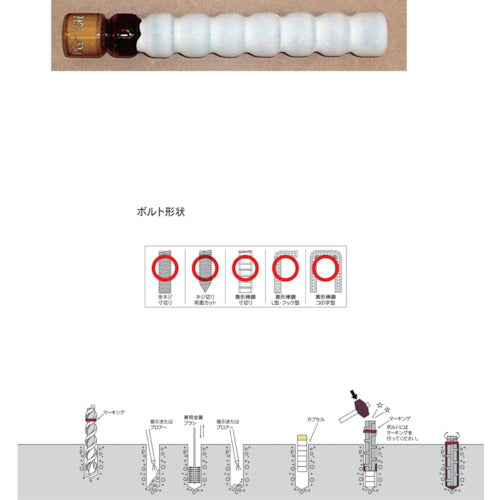

DECOLUXE Chemical Anchor PG Type (Drive-in Type) PG-19N 1 Piece

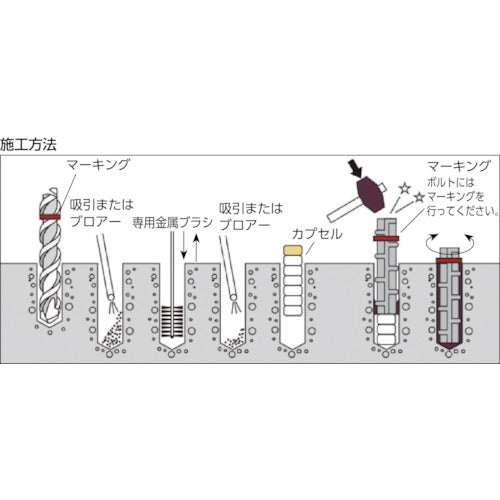

Catalogue number: PG-19N Features: ●An adhesive anchor that is both healthy and environmentally friendly, as it does not use any of the 13 VOCs specified by the Ministry of Health, Labor and Welfare as raw materials that cause sick house syndrome. There is absolutely no unpleasant styrene odor during installation. ●Easy to install by simply tapping with a hammer. ●Easy to install processed rebar such as curved rebar. ●Easy to install with a hammer, etc. ●Can install curved rebar (L-shaped, J-shaped, hook-shaped, etc.). Applications: ●For reinforcing bars for renovation. ●Installing support brackets. ●Installing ladders. ●Installing curved rebar. ●Fixing equipment. Specifications: ●Outer diameter (mm): 18 ●Total length (mm): 167 ●Capacity (ml): 36 ●Bolts used (irregular steel bar): M20, W3/4 (D19) ●Drill diameter (irregular steel bar) (mm): 23, 22, (24) ●Drilling depth (mm): 170 ●Maximum tensile load (kN): 183 ●Long-term allowable tensile load (kN): 24.4 ●Short-term allowable tensile load (kN): 36.6 ●Driving method Material/Finish: ●Main agent: Non-styrene modified vinyl ester resin Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/m［［M2］］.
