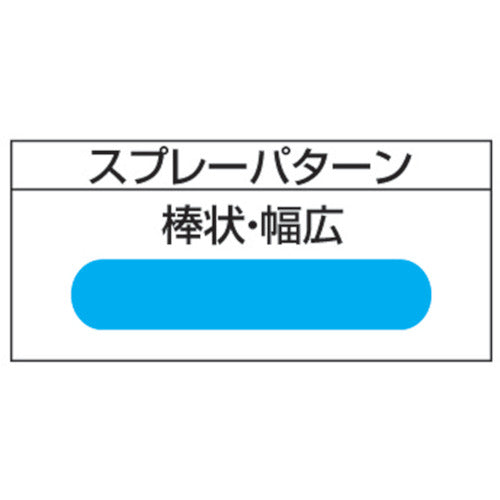

Catalog number: JGX-502-125-2.5-S Features: ● With a gun pressure of 0.29MPa, it has a large amount of paint and is suitable for general industry. Applications: ● Automobiles (painting), metal painting, woodworking, furniture, plastic painting, food industry, etc. Specifications: ● Nozzle diameter (mm): 2.5 ● Required compressor (kW): 1.5-2.2 ● Air consumption (L/min): 350 ● Pattern opening (mm): 280 ● Atomization stage: Highly fine ● Cup mounting port: G3/8 ● Suction type ● Air intake port: G1/4 Material/Finish: ● Body: Aluminum die-cast ● Liquid contact parts: Stainless steel (SUS304)
