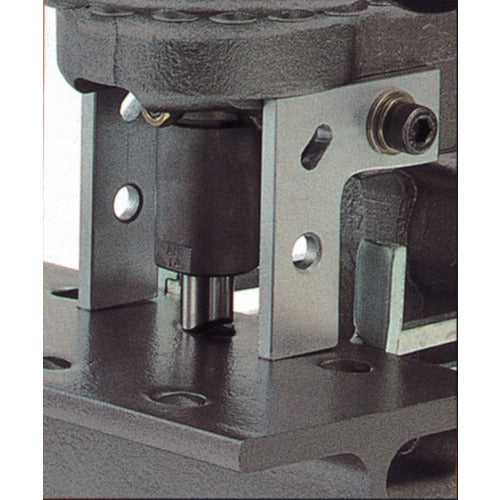

DIAMOND Hydraulic Puncher EP-19V 1 unit

Catalog number: EP-19V Features: ●Can drill holes in flat bars, channel steel, etc. ●Can drill holes in equal-leg angle steel and channel steel. Specifications: ●Maximum drilling capacity (mm) Stainless steel: t5 x φ20 ●Maximum drilling capacity (mm) Iron: t6 x φ20 ●Through dimension (mm): 55 ●Power cord length (m): 2.5 ●Output load kN (t): 127 (13) ●Width (mm): 140 ●Depth (mm): 195 ●Height (mm): 485 ●Power consumption (W): 1045 ●Power (A): 11 ●Drilling capacity (mm) Stainless steel: 15 ●Drilling capacity (mm) Iron: 15 ●Power supply: AC100V ●Double insulation ●Power cord length: 2.5m Set contents/accessories: ●Tool set ●Hydraulic oil ●Side handle ●Replacement blade round hole φ11 set ●Steel case
