DIA Gap Gauge 100MY 100MY 1 piece

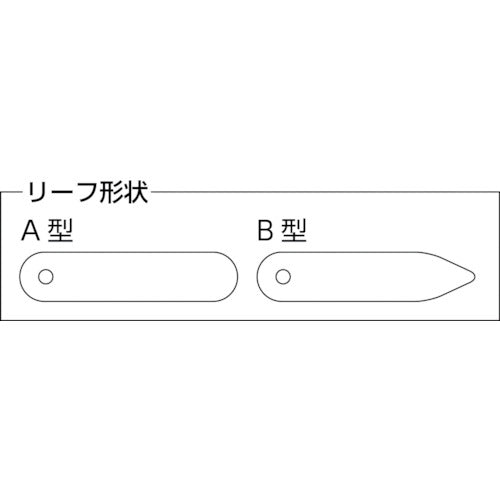

Catalog number: 100MY Features: ● Used to measure the gap between pistons and cylinders in automobiles, electric motors, and internal combustion engines. Applications: ● For measuring and adjusting gaps. Specifications: ● Manufacturer code: 100MY ● Leaf shape: A ● Length (mm): 100 ● Number of pieces (pieces): 19 ● Set details (mm): 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.70, 0.80, 1.00 ● Leaf width: 12.7mm Material/Finish: ● Carbon tool steel (hardened product) Caution: ● Very susceptible to scratches, bending, and rust. Please handle with care.
