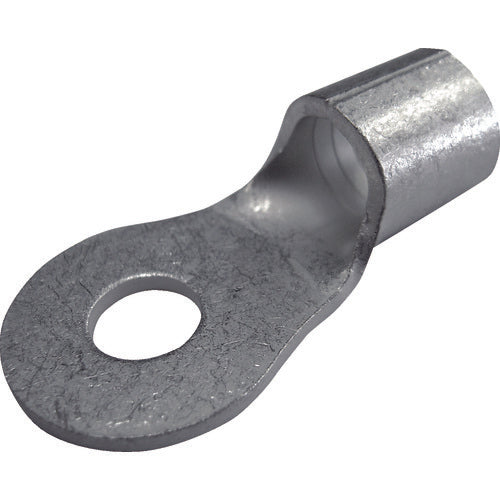

DST Bare Crimp Terminal Round Terminal R0.5-3 100 Pieces R0.5-3 1 Box

Catalog number: R0.5-3 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 0.5 to 0.8 ● Wire clamping range Stranded wire (mm2): 0.2 to 0.5 ● Wire clamping range AWG: 24-20 ● External diameter (mm): 5.2 ● Stud diameter (mm): 3.2 ● Total length (mm): 12.5 ● Internal dimension (mm): 1.2 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
