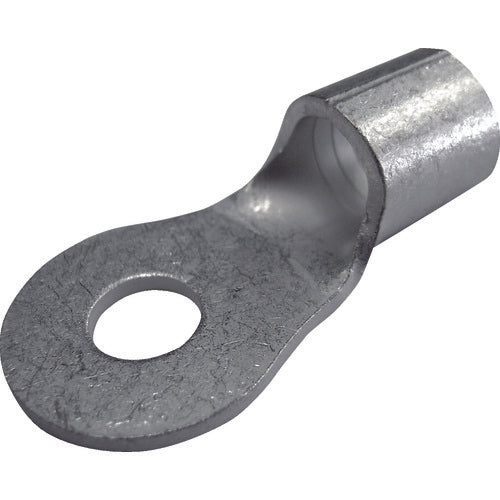

DST Bare Crimp Terminal Round Terminal R22-S5 100 Pieces R22-S5 1 Box

Catalogue number: R22-S5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 4.62-5.81 ● Wire clamping range Stranded wire (mm2): 16.78-26.66 ● Wire clamping range AWG: 4 ● External dimensions (mm): 12 ● Stud diameter (mm): 5.3 ● Total length (mm): 32.2 ● Inner dimensions (mm): 7.7 ● JIS standard product: × ● Wire clamping range Solid wire (mm): 4.62-5.81 ● External dimensions (mm): 12 ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
