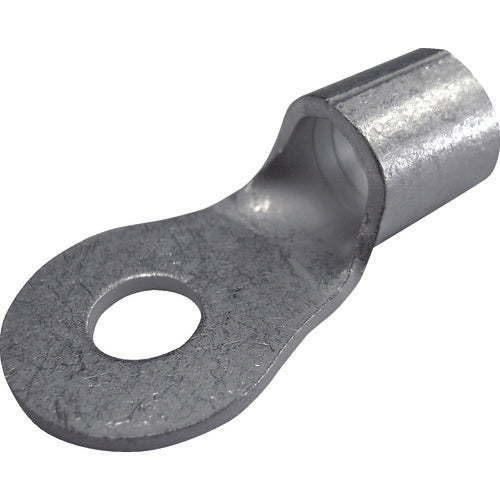

DST bare crimp terminal round terminal R2-S5 100 pieces R2-S5 1 box

Catalogue number: R2-S5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.14-1.82 ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● External diameter (mm): 8.5 ● Stud diameter (mm): 5.3 ● Total length (mm): 16.5 ● Internal dimension (mm): 2.3 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
