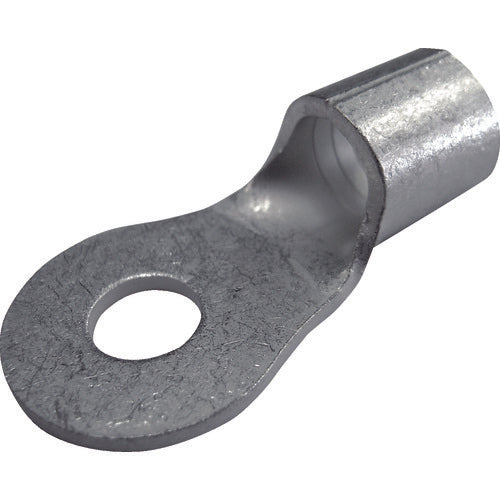

DST Bare Crimp Terminal Round Terminal R325-10 6 pieces R325-10 1 box

Catalogue number: R325-10 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 17.5-20.3 ● Wire clamping range Stranded wire (mm2): 242.27-325.0 ● Wire clamping range AWG: 500-600 ● External dimensions (mm): 50.5 ● Stud diameter (mm): 10.5 ● Total length (mm): 92 ● Inner dimensions (mm): 28 ● JIS standard product: × ● External dimensions (mm): 50.5 ● Wire clamping range Solid wire (mm): 17.5-20.3 ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
