大同端子製造（株）

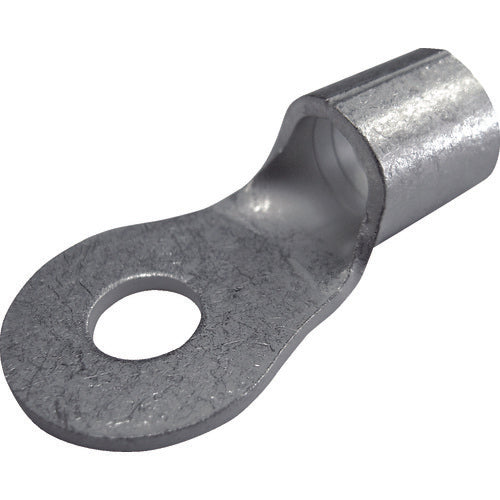

DST bare crimp terminal round terminal R3.5-6 100 pieces R3.5-6 1 box
DST bare crimp terminal round terminal R3.5-6 100 pieces R3.5-6 1 box
Regular price
¥1,214
Regular price
Sale price
¥1,214
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: R3.5-6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.82-2.4 ● Wire clamping range Stranded wire (mm2): 2.63-4.6 ● Wire clamping range AWG: 12 ● External diameter (mm): 12 ● Stud diameter (mm): 6.4 ● Total length (mm): 21.8 ● Internal dimensions (mm): 3 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
