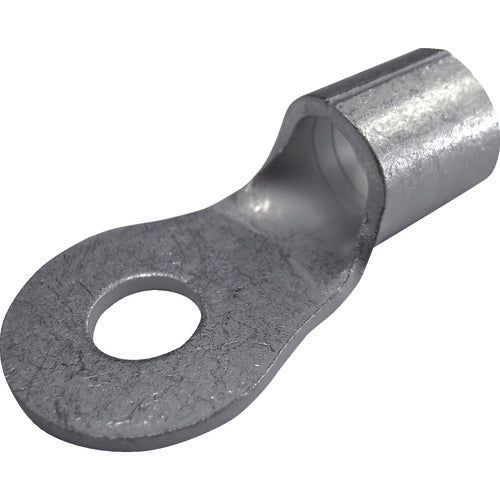

DST bare crimp terminal round terminal R5.5-V3.5 100 pieces R5.5-V3.5 1 box

Catalog number: R5.5-V3.5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.82-2.89 ● Wire clamping range Stranded wire (mm2): 2.63-6.64 ● Wire clamping range AWG: 12-10 ● External diameter (mm): 7.2 ● Stud diameter (mm): 3.7 ● Total length (mm): 15.8 ● Internal dimension (mm): 3.4 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
