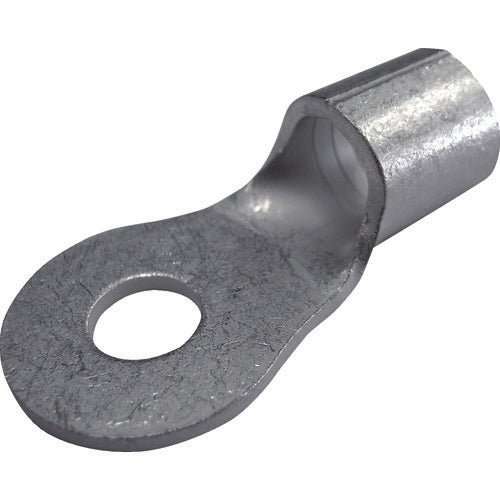

DST bare crimp terminal round terminal R60-S6 50 pieces R60-S6 1 box

Catalogue number: R60-S6 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 7.34-8.26 ● Wire clamping range Stranded wire (mm2): 42.42-60.57 ● Wire clamping range AWG: 1/0 ● External dimension (mm): 16 ● Stud diameter (mm): 6.4 ● Total length (mm): 45 ● Inner dimension (mm): 11.4 ● JIS standard product: × ● External dimension (mm): 16 ● Wire clamping range Solid wire (mm): 7.34-8.26 ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
