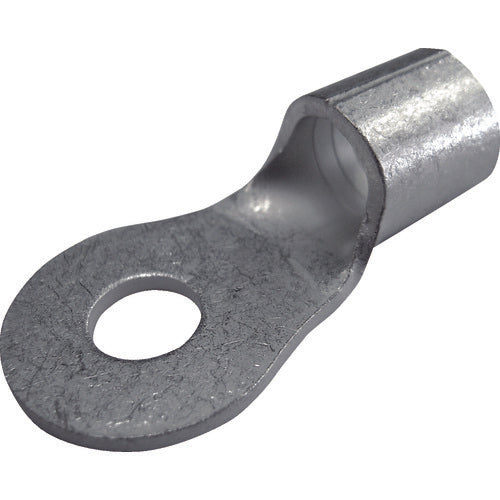

DST Bare Crimp Terminal Round Terminal R8-SS5 100 Pieces R8-SS5 1 Box

Catalogue number: R8-SS5 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and a mounting hole for screw fixing. Applications: ● For connecting soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 2.89 to 3.65 ● Wire clamping range Stranded wire (mm2): 6.64 to 10.52 ● Wire clamping range AWG: 8 ● External diameter (mm): 9 ● Stud diameter (mm): 5.3 ● Total length (mm): 21.3 ● Internal dimension (mm): 4.5 ● JIS standard product: × ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
