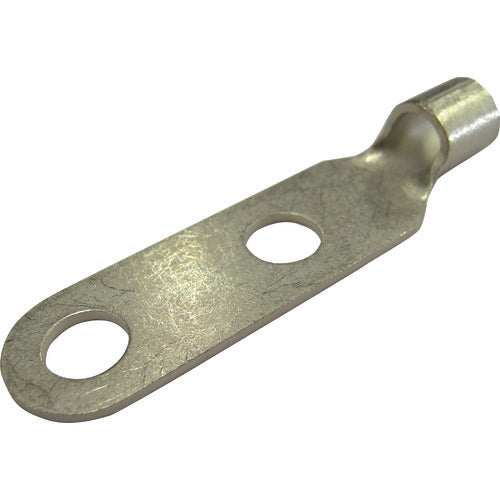

DST bare crimp terminal, two-hole terminal, RD100-14, 20 pieces, RD100-14, 1 box

DST bare crimp terminal, two-hole terminal, RD100-14, 20 pieces, RD100-14, 1 box

JAN： 　
Bare Crimp Terminal Connection terminals DST crimp terminal Electrical wiring parts Electronics
¥11,801
¥11,801
Sale Sold out
Shipping calculated at checkout.
Catalogue number: RD100-14 Features: ● A bare crimp terminal with a wide contact surface (tongue) and two mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 96.3 - 117.2 ● Wire clamping range AWG: 4/0 ● External dimension (mm): 32.0 ● Stud diameter (mm): 16 ● Total length (mm): 98 ● Internal dimension (mm): 16.4 ● JIS standard product: ○ ● Mounting hole spacing (mm): 40 ● External dimension (mm): 32 ● Two-hole terminal Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
