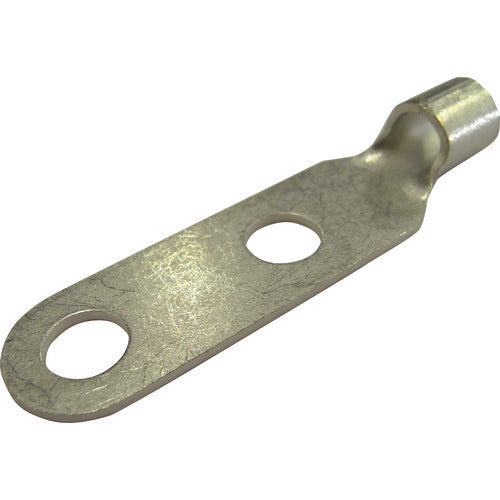

DST bare crimp terminal, two-hole terminal, RD150-14, 12 pieces, RD150-14, 1 box

Catalogue number: RD150-14 Features: ● A bare crimp terminal with a wide contact surface (tongue) and two mounting holes for screw fixing. Applications: ● For connecting soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 117.2-152.05 ● Wire clamping range AWG: 250-300 ● External dimension (mm): 36.0 ● Stud diameter (mm): 16 ● Total length (mm): 106 ● Internal dimension (mm): 19.5 ● JIS standard product: ○ ● Mounting hole spacing (mm): 40 ● External dimension (mm): 36 ● Two-hole terminal Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
