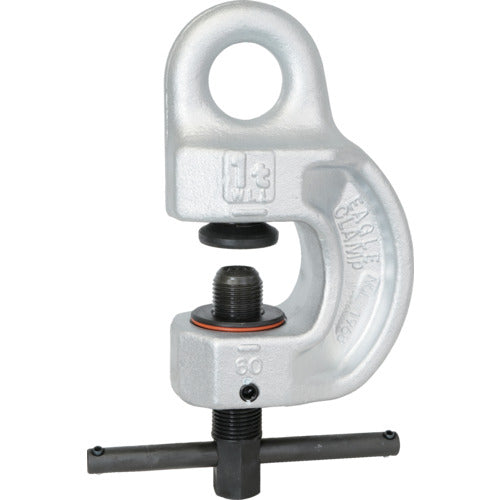

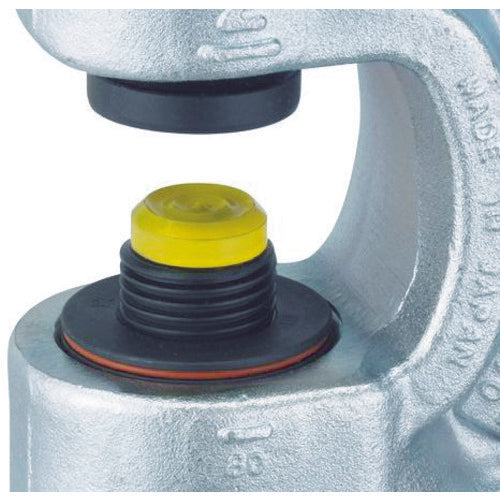

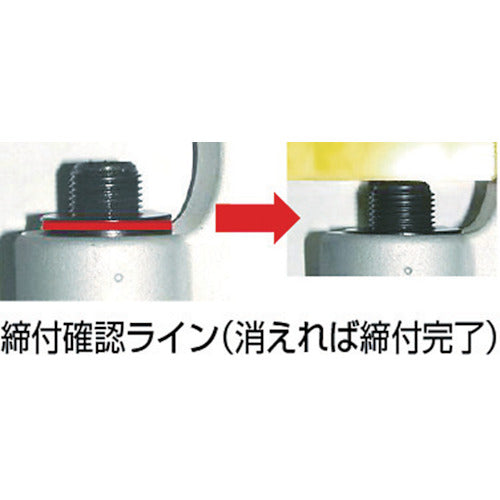

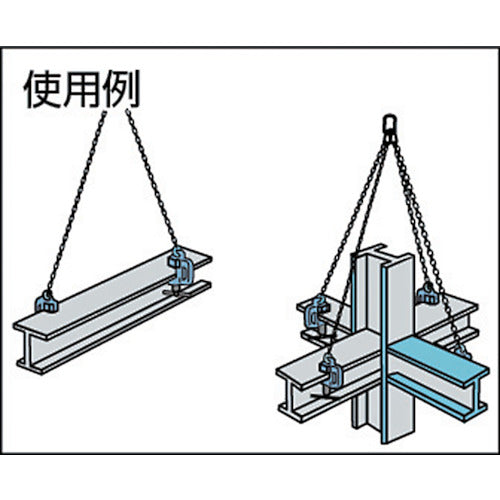

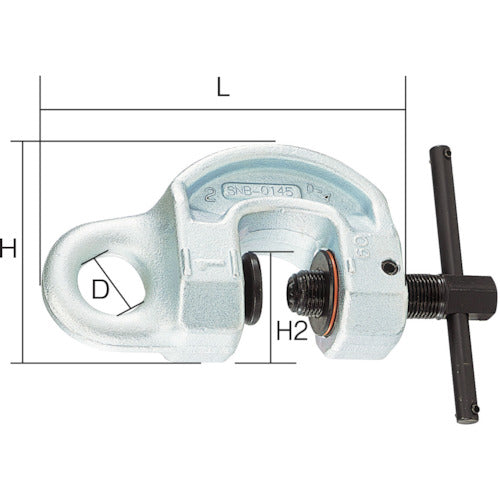

Catalog number: SBN-2-5-30 Features: ●The spherical jaw converts pulling force in any direction into clamping force, allowing for free lifting and pulling in all directions. ●The tightening status check line allows you to check the tightening status of the screw at a glance. ●The slim design allows you to work in narrow spaces. ●A convenient screw clamp that can be used for lifting, pulling, and hanging. Applications: ●Lifting, inverting, and pulling steel plates, shaped steel, flat steel, steel beams, steel frames, bridges, etc. ●For lifting, transporting, hanging, inverting, welding, assembly, construction, mounting, pressing, bending, and hanging pieces. Specifications: ●Basic load capacity (t): 0.4-2 ●Clamping range (mm): 5-30 ●Dimensions (mm) D: 36 ●Dimensions (mm) H: 127 ●Dimensions (mm) H2: 70 ●Dimensions (mm) L: 195 ●Maximum load capacity (t): 2 ●Load capacity (min-max) (kg): 400-2000 ●Height (mm): 127 ●Width (mm): 195 ●Made in an ISO9001 certified factory ●With tightening check line Caution: ●Always use with two or more points of suspension. ●Never hang loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
