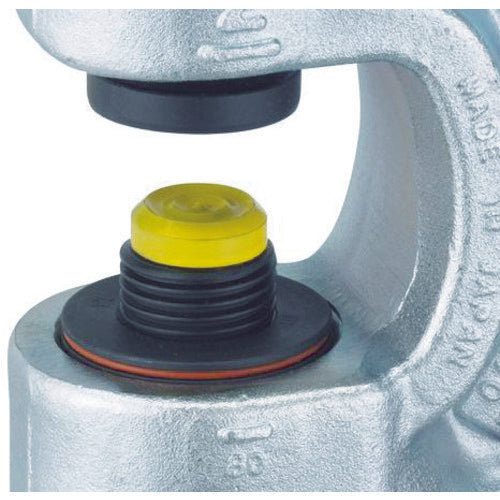

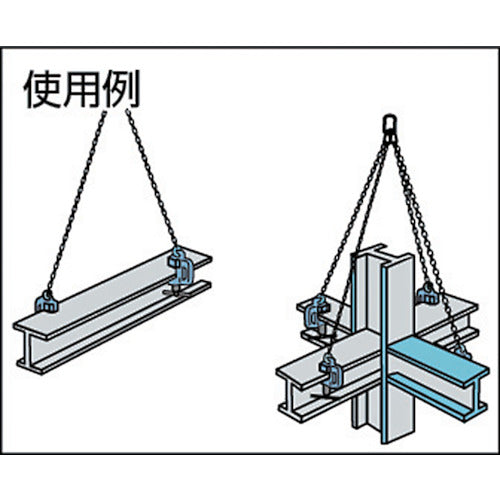

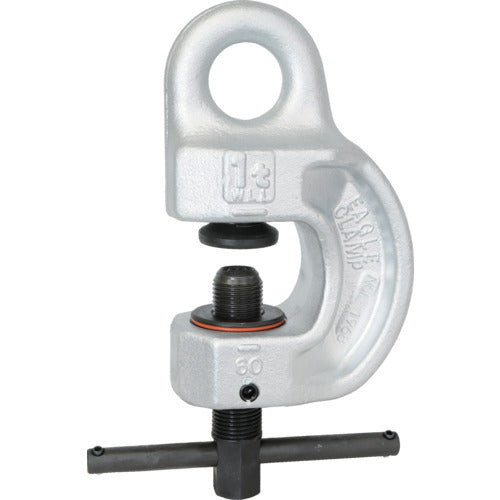

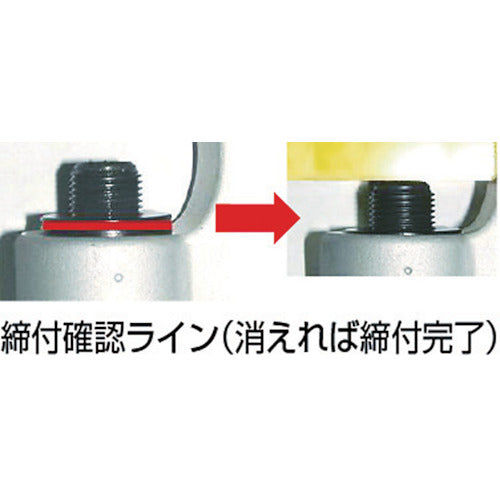

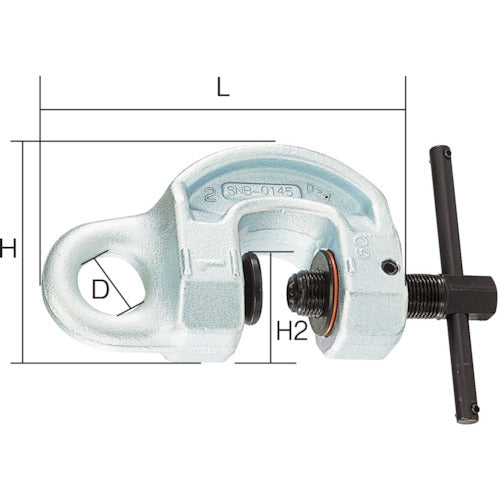

Catalog number: SBN-5-10-40 Features: ●The spherical jaw converts pulling force in any direction into clamping force, allowing for free lifting and pulling in all directions. ●The tightening status check line allows you to check the tightening status of the screw at a glance. ●The slim design allows you to work in narrow spaces. ●A convenient screw clamp that can be used for lifting, pulling, and hanging. Applications: ●Lifting, inverting, and pulling steel plates, shaped steel, flat steel, steel beams, steel frames, bridges, etc. ●For lifting, transporting, hanging, inverting, welding, assembly, construction, mounting, pressing, bending, and hanging pieces. Specifications: ●Basic load capacity (t): 1-5 ●Clamping range (mm): 10-40 ●Dimensions (mm) D: 50 ●Dimensions (mm) H: 177 ●Dimensions (mm) H2: 92 ●Dimensions (mm) L: 260 ●Maximum load capacity (t): 5 ●Load capacity (min-max) (kg): 1000-5000 ●Height (mm): 177 ●Width (mm): 260 ●Made in an ISO9001 certified factory ●With tightening check line Caution: ●Always use with two or more points of suspension. ●Never hang loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
