EAGLE Horizontal Lifting Clamp G-2t (5-35) G-2-5-35 1 unit

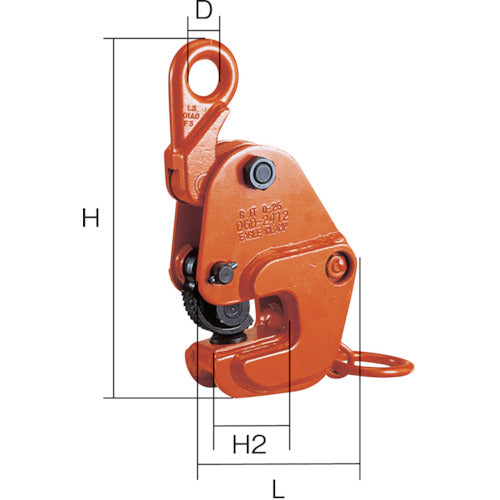

Catalog number: G-2-5-35 Features: ● A clamp suitable for lifting and raising structural steel. ● Can also be used for short-faced items such as I-beams. ● Comes with a reliably latch-type locking device (spring-type tightening mechanism). Applications: ● Horizontal lifting of structural steel (angle steel, channel steel, I-beam, H-beam), steel frames, bridges, steel structures, steel plates, etc. ● For horizontal lifting, horizontal lifting, erection, transportation, lifting, pulling down (using a reversing device, etc.), welding, assembly, mounting, pressing, bending. Specifications: ●Basic load capacity (t): 0.4-2 ●Clamping range (mm): 5-35 ●Dimensions (mm) D: 35 ●Dimensions (mm) H: 337 ●Dimensions (mm) H2: 75.5 ●Dimensions (mm) L: 155 ●Maximum load capacity (t): 2 ●Load capacity (min-max) (kg): 400-2000 ●Height (mm): 337 ●Width (mm): 155 ●With latch-type locking device ●For 2-point lifting ●Made in an ISO9001 certified factory Material/Finish: ●High tensile steel Caution: ●Always use with 2 or more points of lifting. ●Never lift loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
