EAGLE Lightweight Vertical Lifting Clamp E-2t (3-30) E-2-3-30 1 unit

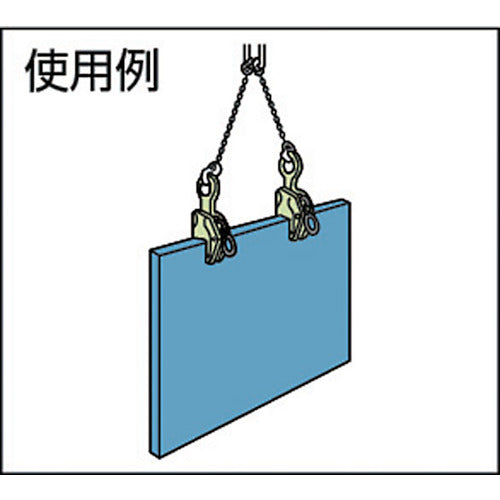

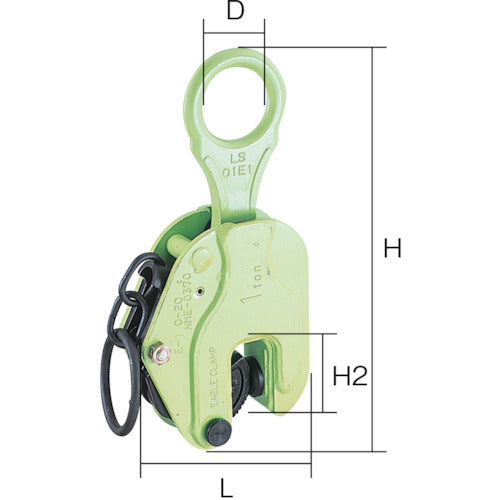

Catalogue number: E-2-3-30 Features: ●Large hanging ring is used to improve work efficiency. ●A lightweight clamp with a compact design that minimizes product mass. ●Comes with a latch-type locking device (spring-type tightening mechanism) that works reliably. Applications: ●Applicable materials: steel plates, shaped steel, flat steel, steel beams, steel frames, steel sheet piles, steel structures, steel frames, forgings, castings, crane girders, crane beams, pipes, etc. ●For vertical hanging, transportation, inversion, welding, assembly, construction, mounting, pressing, processing, and bending. Specifications: ●Basic load capacity (t): 0.4-2 ●Clamping range (mm): 3-30 ●Dimensions (mm) D: 60 ●Dimensions (mm) H: 322 ●Dimensions (mm) H2: 75 ●Dimensions (mm) L: 153 ●Maximum load capacity (t): 2 ●Load capacity (min-max) (kg): 400-2000 ●Height (mm): 322 ●Width (mm): 153 ●With latch-type locking device ●For 2-point lifting ●Made in an ISO9001 certified factory Material/Finish: ●High tensile steel Caution: ●Always use with 2 or more points of lifting. ●Never lift loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
