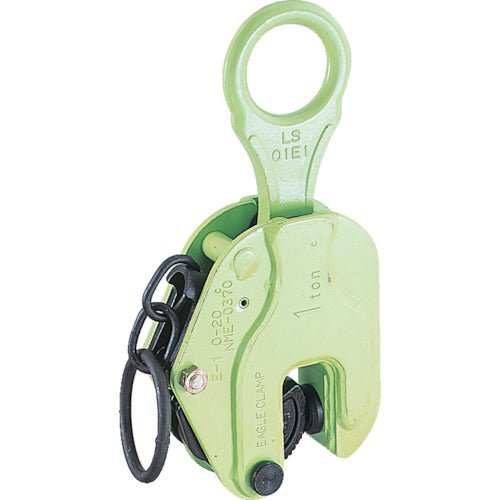

EAGLE Lightweight Vertical Lifting Clamp E-350kg (2-16) E-350-2-16 1 unit

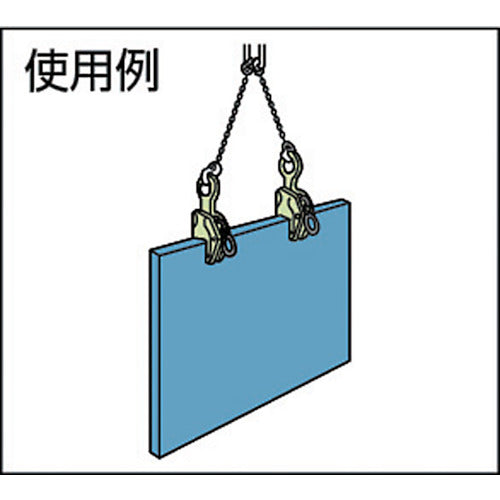

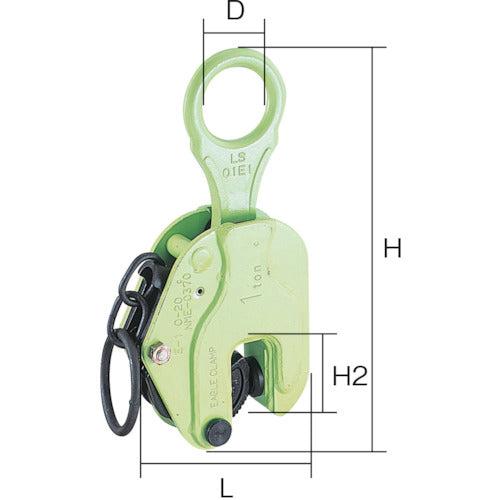

Catalog number: E-350-2-16 Features: ●Large hanging ring is used to improve work efficiency. ●A lightweight clamp with a compact design that minimizes product mass. ●Comes with a latch-type locking device (spring-type tightening mechanism) that works reliably. Applications: ●Applicable materials: steel plates, shaped steel, flat steel, steel beams, steel frames, steel sheet piles, steel structures, steel frames, forgings, castings, crane girders, crane beams, pipes, etc. ●For vertical hanging, transportation, inversion, welding, assembly, construction, mounting, pressing, processing, and bending. Specifications: ●Basic load capacity (t): 0.07-0.35 ●Clamping range (mm): 2-16 ●Dimensions (mm) D: 36 ●Dimensions (mm) H: 200 ●Dimensions (mm) H2: 45.5 ●Dimensions (mm) L: 100 ●Maximum load capacity (t): 0.35 ●Load capacity (min-max) (kg): 70-350 ●Height (mm): 200 ●Width (mm): 100 ●With latch-type locking device ●For 2-point lifting ●Made in an ISO9001 certified factory Material/Finish: ●High tensile steel Caution: ●Always use with 2 or more points of lifting. ●Never lift loads that exceed the clamp's maximum load capacity. ●Be sure to inspect before starting work, and do not use clamps that are malfunctioning or have deformed, worn, or damaged bodies or parts. ●Be sure to read the instruction manual carefully before use.
