ELESA valve cap, thickness 30mm, thread size G1/2, VL-1/2L, 1 piece
ELESA valve cap, thickness 30mm, thread size G1/2, VL-1/2L, 1 piece
Regular price
¥908
Regular price
Sale price
¥908
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

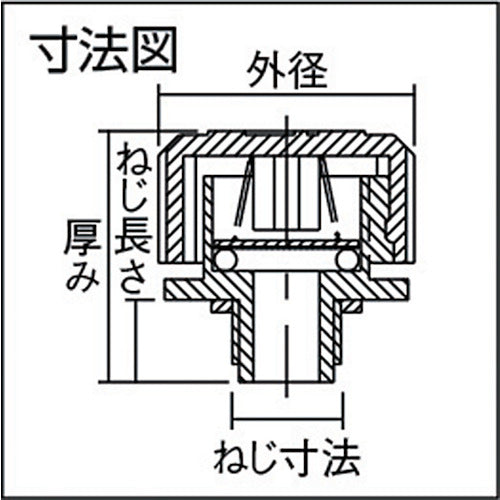

Catalog number: VL-1/2L Features: ●When the tank reaches the set pressure, the valve automatically opens and the high-pressure air is discharged. ●Does not draw in outside air. ●Exhaust cap ●Use for speed reducer variators, compressors, etc. that require the discharge of compressed air. Specifications: ●Outer diameter (mm): 31 ●Thickness (mm): 30 ●Heat resistance temperature (℃): 120℃ ●Thread length (mm): 10.0 ●Thread dimensions: G1/2 ●Threaded type ●Set pressure: 10hPa Material/Finish: ●Cap: Polyamide (PA) ●Packing: Nitrile rubber (NBR) Caution: ●Do not use with water tanks as the resin will absorb water and expand. ●Do not use with gasoline or alcohol.
