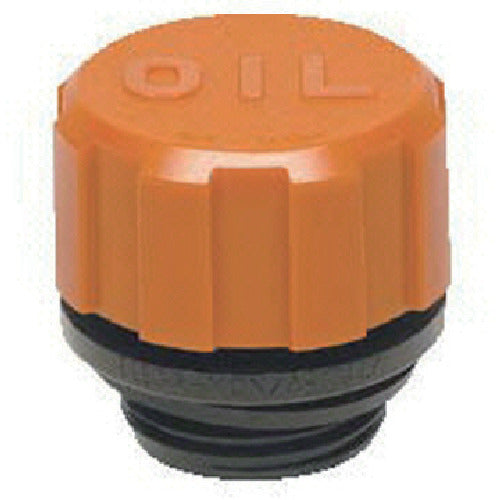

ELESA Breather Cap Outer Diameter 70mm Thickness 59 BR-1.1/4T 1 pc

Catalog number: BR-1.1/4T Features: ●Ventilated structure allows air to flow in and out freely even with the cap attached. ●Even if a large pressure difference occurs temporarily in the tank due to a sudden rise in temperature or oil backlash, it quickly regains equilibrium with the outside air, so it is safe. Ideal for use with boosters and pressure reducers where the amount of oil increases and decreases drastically. ●The special internal inclined blades protect against oil splashes, so there is no oil leakage under normal conditions of use. In addition, the air filter is built into the ventilation hole, so there is no need to worry about environmental pollution due to oil fumes. Specifications: ●Outer diameter (mm): 70 ●Thickness (mm): 59 ●Heat resistance temperature (℃): 100℃ ●Thread length (mm): 17 ●Thread diameter: G1 1/4 ●Screw-in type Material/Finish: ●Cap: Polyamide orange ●Threaded part: Polyamide black ●Air filter: Polyurethane ●Packing: Nitrile rubber (NBR) Caution: ●Avoid using with water tanks as the resin will absorb water and expand. ●Gasoline and alcohol cannot be used. ●Shipping to Hokkaido and Okinawa is 1,500 yen.
