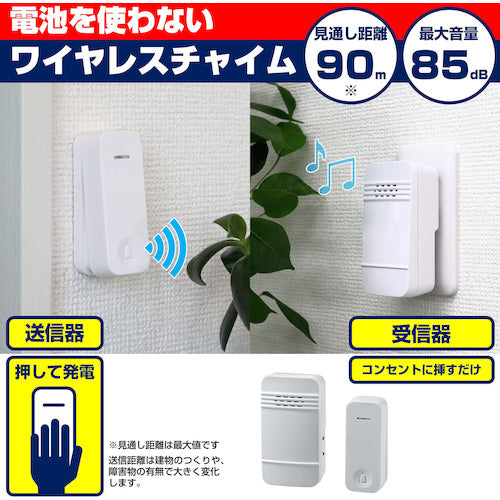

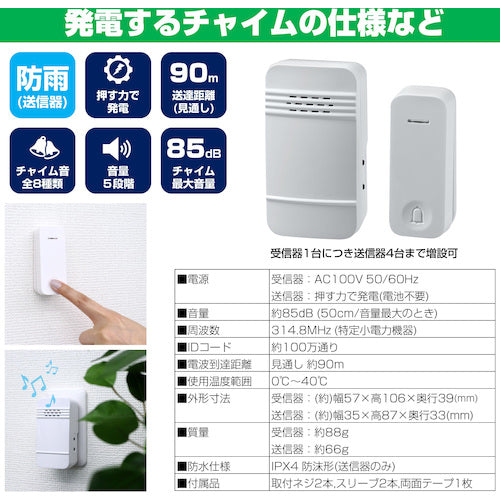

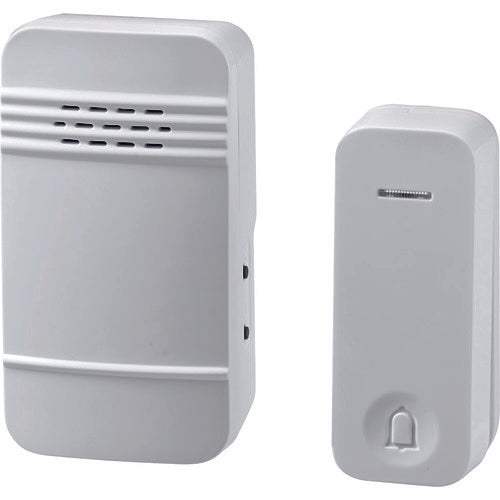

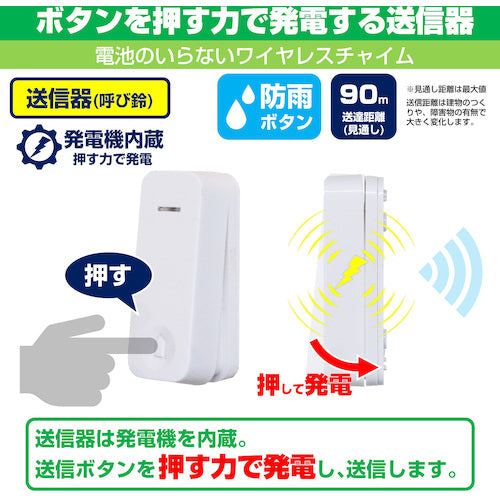

Catalog number: WC-S6040AC Features: ● The transmitter does not require batteries, and the receiver is AC powered, so it can be used maintenance-free. Applications: ● For use as a call button at entrances, offices, warehouses, etc. Specifications: ● Power supply: AC100V 50/60Hz ● Volume (dB): 85 ● Receiver width x depth x height (mm): 57 x 106 x 39 ● Transmitter width x depth x height (mm): 35 x 87 x 33 ● Protection class: IPX4 ● Receiver power supply: AC100V 50/60Hz ● Push button transmitter power supply: Generates power by pushing (no batteries required) ● Volume: Approximately 85dB/50cm *Volume (at maximum) ● Frequency: 314.8MHz (specific low-power device) ● ID code: Approximately 1 million ways ● Radio wave reach: Line of sight approximately 90m ● Operating temperature range: 0℃ to 40℃ ● Receiver external dimensions width x height x depth: Approximately 57 x 106 x 39mm ● Push button transmitter external dimensions width x height x depth: Approximately 35 x 87 x 33mm (including mounting holder)
