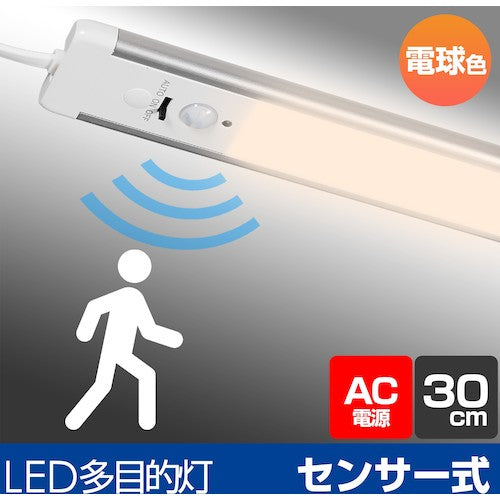

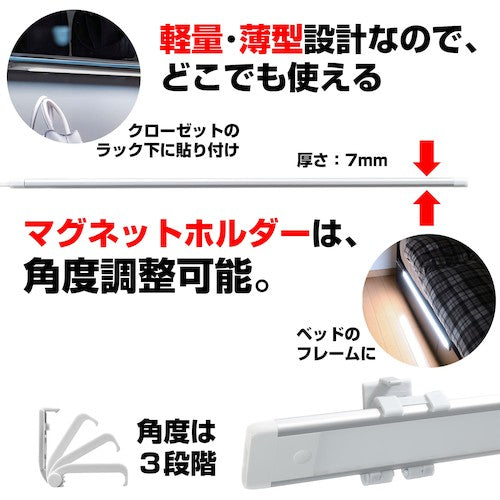

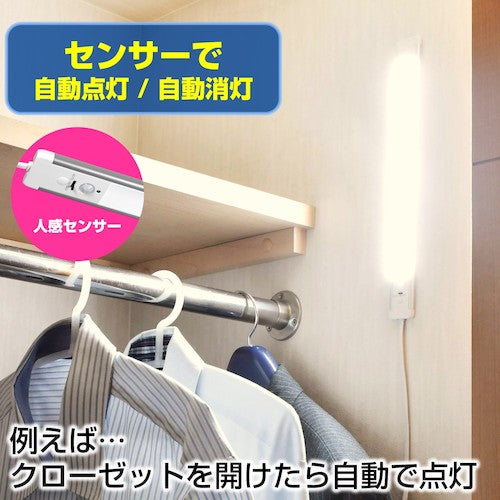

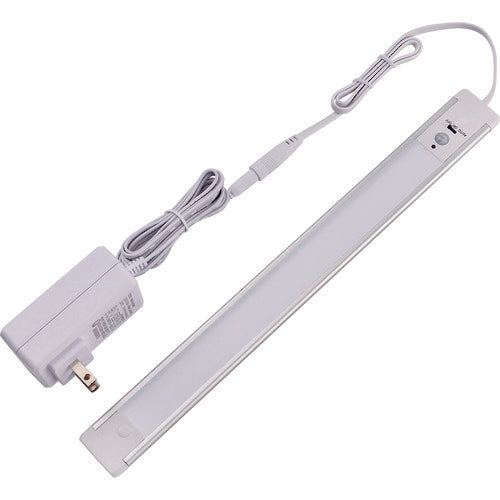

Catalog number: ALT-2030PIR-L Features: ● Automatically turns on when it detects people in a dark place and automatically turns off after about 15 seconds. ● Up to three separately sold connecting units (31 cm) can be connected. ● Angle can be adjusted with the included magnetic holder. ● Uses a light guide plate, so it is slim but bright and even. ● Thin and slim, so it can be easily installed. Specifications: ● Brightness (lm): 500 ● Light source color: Incandescent color ● Width (mm): 32 ● Length (mm): 316 ● Height (mm): 9 ● Power supply (V): Input AC100-240V 50/60Hz Output DC24V 1.2A ● Power consumption (W): 7.5 ● Color: White ● Cord length (m): Approximately 1.8m ● Standard power consumption fee: 0.2 yen/h ● Voltage (V): AC100 (50/60Hz) ● Sensor lighting retention time: Approximately 15 seconds ● Illumination starting at lighting: Approximately 10lx or less ● Operating temperature range: 10 to 40°C ● Main body cord length: Approximately 0.5m ● Thickness: 9 (mm) (maximum value) ● Dedicated AC adapter: Input AC100-240V 50/60Hz 1.0A, Output DC24V 1.2A, Cord length Approximately 1.8m●Color rendering: Ra80●Rated power consumption when maximumly connected: (3 connected 31cm connecting handsets): 27.5W (strong) Set contents/accessories:●1 AC adapter●2 magnetic holders●2 large wood screws (φ2.8 x 19mm) 2 small wood screws (φ2.8 x 9.5mm)●2 sleeves (φ6 x 28mm)●2 double-sided tape (7.5cm)●3 cord stickers●1 end cap●1 connecting cord (approximately 25cm)●1 straight connection connector Note: ●The 61cm connecting handset cannot be used.
