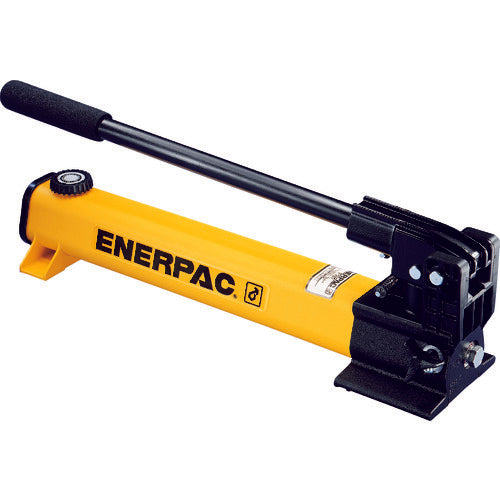

Catalog number: P-392 Features: ●This pump has a two-stage automatic speed switching function between low pressure, which discharges a large amount until the cylinder is loaded, and high pressure of 70MPa. ●The main body mass is approximately half that of a steel manual pump. ●Comes with a handle hook for easy carrying. Applications: ●For single-acting cylinders. Specifications: ●Discharge volume per operation (ml) high pressure: 2.5 ●Discharge volume per operation (ml) low pressure: 11.3 ●Maximum operating pressure (MPa) high pressure: 70 ●Maximum operating pressure (MPa) low pressure: 1.4 ●Discharge port diameter: NPT3/8 ●Effective oil volume (L): 0.72 ●Compatible cylinder: single-acting ●Material: reinforced plastic ●Discharge port diameter (NPT): 3/8 ●Compatible cylinder: single-acting ●Discharge port diameter: NPT3/8 Material/Finish: ●Main body: reinforced plastic
