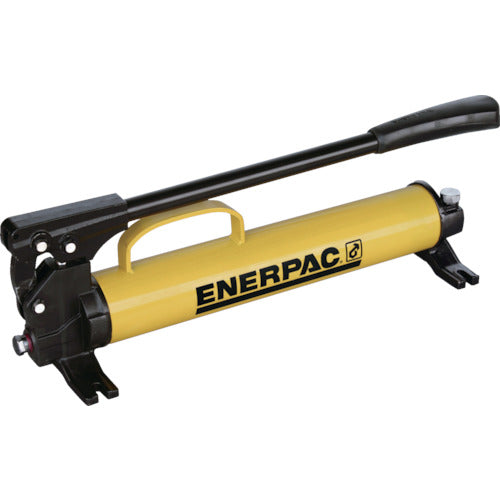

Catalog number: P80 Features: ●This pump has a two-stage automatic speed switching function between low pressure, which discharges a large amount until the cylinder is loaded, and high pressure of 70MPa. ●The portable handle provides ease of use and durability. ●The pressure can be increased to 70MPa with very light handle operation force. ●Equipped with a large tank, it can be used without opening the air vent, preventing oil leakage. Applications: ●For single-acting cylinders. Specifications: ●Discharge volume per operation (ml) high pressure: 2.46 ●Discharge volume per operation (ml) low pressure: 16.38 ●Maximum operating pressure (MPa) high pressure: 70 ●Maximum operating pressure (MPa) low pressure: 3.4 ●Discharge port diameter: NPT3/8 ●Effective oil volume (L): 2.2 ●Compatible cylinder: single-acting ●Material: Steel ●Discharge port diameter (NPT): 3/8 ●Compatible cylinder: single-acting ●Discharge port diameter: NPT3/8 Material/Finish: ●Body: Steel
