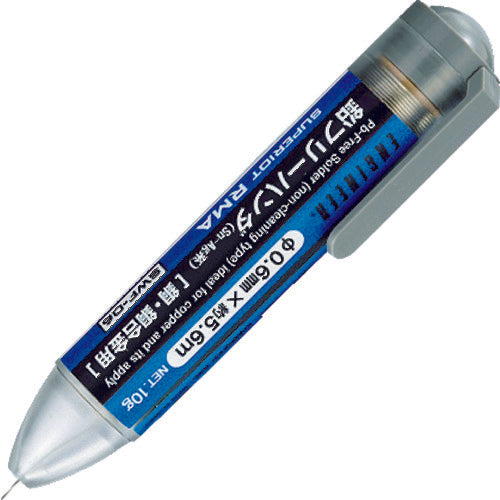

ENGINEER Lead-free solder 0.6mm SWF-06 1 piece

Catalog number: SWF-06 Features: ● Peel strength is equivalent to that of conventional eutectic solder. ● The resin does not contain chlorine or bromine-based activators, so cleaning after soldering is completely unnecessary. ● The residue is non-hygroscopic and has excellent electrical insulation. ● It has good activity retention and exhibits excellent wettability. ● Uses organic amine special activated rosin (non-chlorine type). ● Complies with JIS-AA class and MIL-RMA standards. Applications: ● For soldering work in lead-free environments. Specifications: ● Wire diameter (mm): 0.6 ● Length (m): 5.6 ● Melting point (℃): 217 ● Shape: Round bar ● Melting point: 217℃ ● Flux: JIS-AA class Material/Finish: ● Alloy composition (tin: 96.5%, silver 3%, copper 0.5%) ● Flux: organic amine special activated rosin
