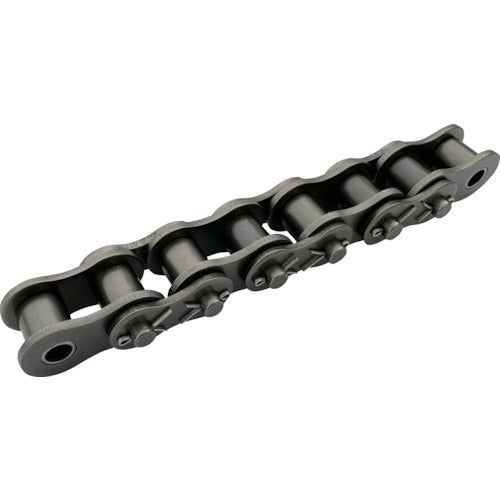

ENUMA EK100D Cotter Pin Type Roller Chain EK120D CP 80L DCJ 1 Piece

ENUMA EK100D Cotter Pin Type Roller Chain EK120D CP 80L DCJ 1 Piece

JAN：4571291784772 　
Bearings, drive equipment, transmission parts chain ENUMA Chain Mechatronics Parts Roller Chain
¥26,434
¥26,434
Sale Sold out
Shipping calculated at checkout.

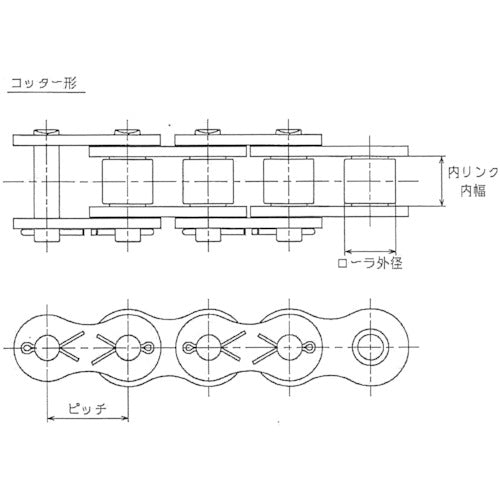

Catalogue number: EK120D CP 80L DCJ Features: ● Chain based on the Japanese Industrial Standard JIS. Applications: ● Power transmission and drive Specifications: ● Chain No.: 120 ● Number of unit links: 80 ● Pitch (mm): 38.1 ● Roller outer diameter (mm): 22.23 ● Inner link inner width (mm): 25.22 ● Tensile strength (kN): 166.7 ● Maximum allowable load (kN): 30.4 ● Maximum allowable tension (kN): 30.4 ● Average tensile strength (kN): 166.7 ● Length (m): 3 ● Type: Split pin ● Split pin type Material/Finish: ● Steel
View full details
