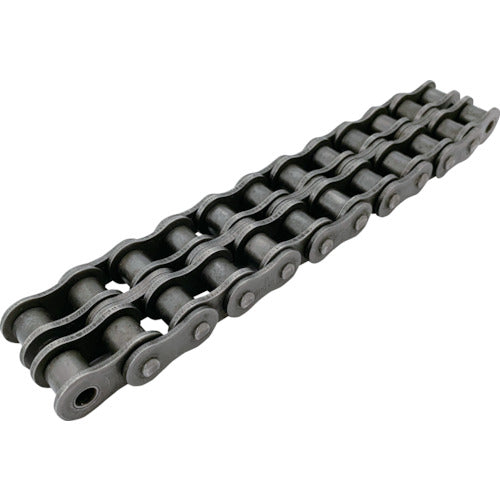

ENUMA EK40D-2 row rivet type roller chain EK40D-2 RP 240L SPJ 1 piece

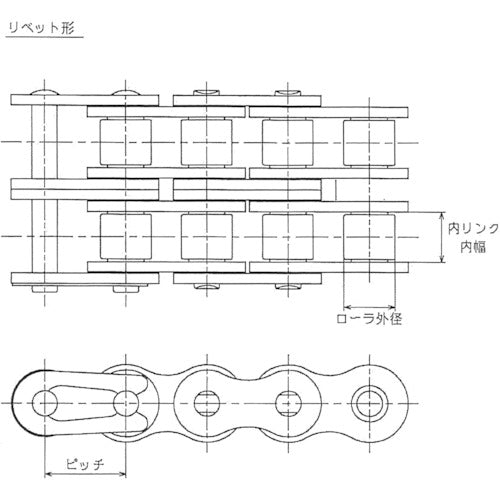

Catalogue number: EK40D-2 RP 240L SPJ Features: ● Chain based on the Japanese Industrial Standard JIS. Applications: ● Power transmission and drive Specifications: ● Chain No.: 40 ● Number of unit links: 240 ● Pitch (mm): 12.7 ● Roller outer diameter (mm): 7.92 ● Inner link inner width (mm): 7.85 ● Tensile strength (kN): 38.2 ● Maximum allowable load (kN): 6.2 ● Maximum allowable tension (kN): 6.2 ● Average tensile strength (kN): 38.2 ● Length (m): 3 ● Type: Clip ● Number of rows: 2 rows ● Rivet type Material/Finish: ● Steel
