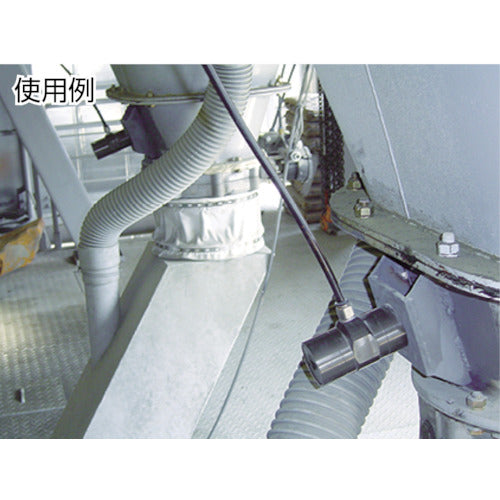

Catalogue number: EPV35L Features: ● Linear vibration prevents powder and granular material from becoming stuck or blocked, and can also be used as a parts feeder. ● Can be easily installed anywhere with just one bolt. ● Vibration frequency and excitation force can be changed simply by adjusting the air pressure. Applications: ● For preventing powder and granular material from becoming blocked, as well as for filling materials and parts feeders. Specifications: ● Vibration frequency (Hz): 51-73 ● Excitation force (N): 347-921 ● Air consumption (L/min): 44-125 ● Width (mm): 56 ● Depth (mm): 56 ● Height (mm): 184 ● Vibration surface (mm): φ56 ● Operating pressure: 0.2-0.6MPa
