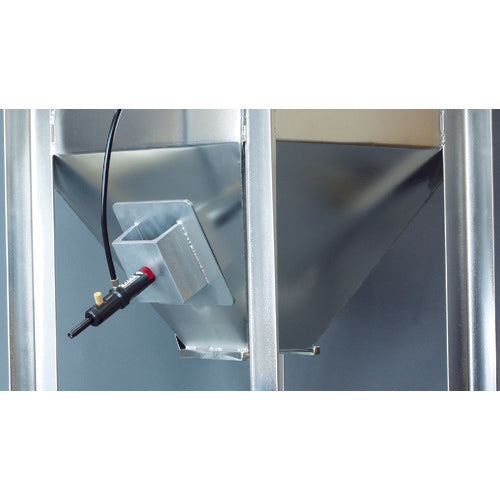

EXEN Ultra-compact piston vibrator ELV8 ELV8 1 unit

Catalog number: ELV8 Features: ● Ultra-compact linear piston vibrator. ● The vibration frequency and force can be changed by adjusting the air pressure. ● The structure allows installation with one bolt, and two levels of amplitude can be adjusted by reversing the installation direction. ● Please contact us separately if a dust cover (sold separately) is required. Applications: ● For preventing blockage of powder and granular material, as well as for material filling and part feeders. Specifications: ● Vibration frequency (Hz) when piston is installed: 25 to 36 ● Vibration frequency (Hz) when cylinder is installed: 34 to 54 ● Exciting force (N) when piston is installed: 13 to 40 ● Exciting force (N) when cylinder is installed: 14 to 41 ● Air consumption (L/min (ANR)) when cylinder is installed: 8 to 76 ● Air consumption (L/min (ANR)) when piston is installed: 4 to 48 ● Vibration surface (mm) when piston is installed: φ8 ● Vibration surface (mm) when cylinder is installed: φ20 ● Width (mm): 23 ● Depth (mm): 23 ● Height (mm): 96 to 124 ● Cylinder diameter (mm): 23 ● Piston diameter (mm): 8 ● Operating pressure: 0.2 to 0.6 MPa ● Height: 96 to 124 mm ● Mounting bolts (mm) when piston is installed/when cylinder is installed: M5, M6
