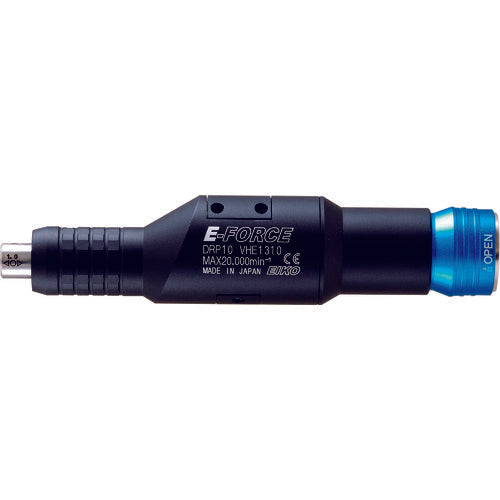

E-FORCE Micro Grinder Optional Parts Mini Reciprocating Total Length 125.0mm DRP10 1 unit

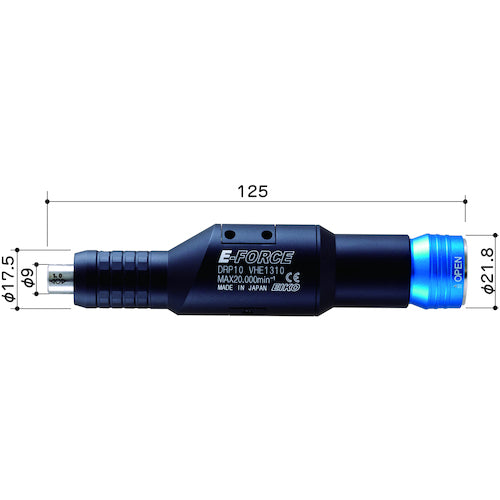

Catalogue number: DRP10 Features: ●The easy-to-use pen-shaped body allows for high-speed polishing. ●Highly efficient work is possible with the highest number of reciprocations in its class (MAX approx. 12,000 times/min). ●The stroke width is fixed at 1mm. ●The maximum tool dimension is shaft diameter φ3.2mm. ●Ceramic fiber grinding wheels (flat and round) can be attached using the included holder. ●Quick change function allows for quick replacement of attachments and motors. Applications: ●Attachment for precision electric micro grinder E-FORCE. ●Recommended work: Polishing fine parts, ribs, slits, etc. of molds. Specifications: ● No-load speed (min-1): 1000-20000 ● Outer diameter (mm): 27.4 ● Total length (mm): 125.0 ● Chuck inner diameter (mm): 3.2 ● Number of reciprocations (variable) (reciprocations/min): 12000 ● Compatible motor: DMT20 ● Maximum tool dimensions (mm): φ3.2 ● Number of reciprocations: 0-approx. 12000 reciprocations/min Set contents/accessories: ● Hexagonal wrench ● Damper file holder ● Ceramic fiber grinding wheel holder ● Electroplated diamond file (1.8×5×55#150) ● Ceramic fiber grinding wheel (1×6×50#1200)
