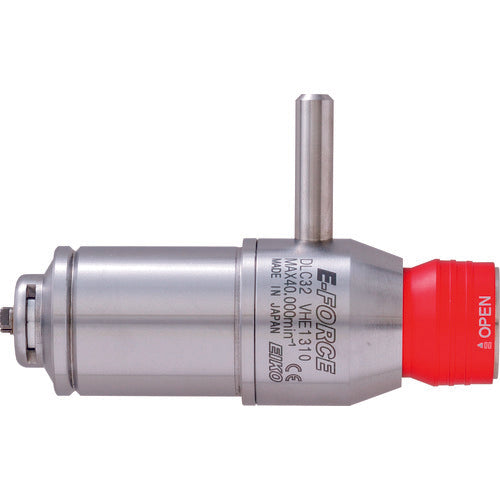

E-FORCE Micro Grinder Optional Parts Lever Clamp Total Length 86.2mm DLC32 1 Unit

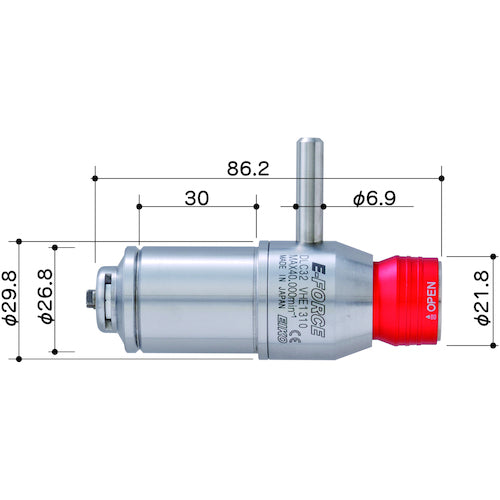

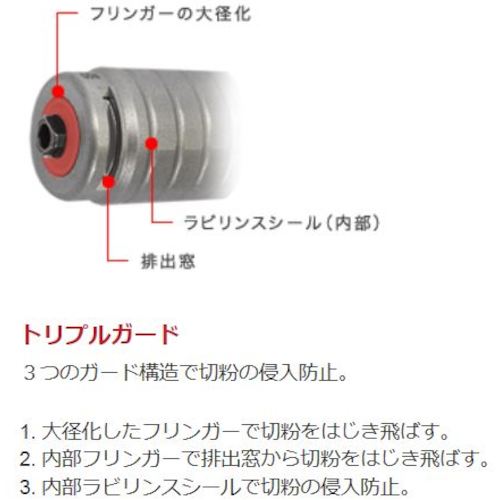

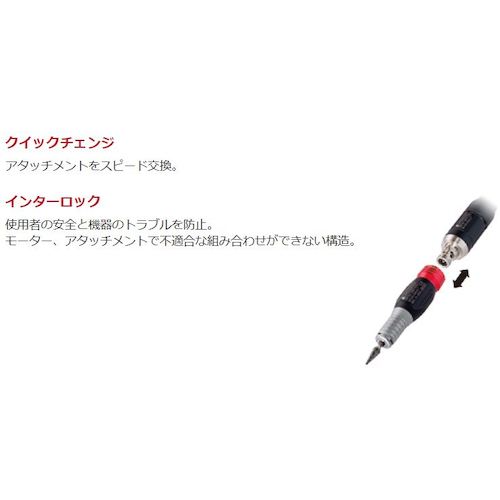

Catalog number: DLC32 Features: ● This is a self-cooling type attachment compatible with automatic machines, and is ideal for processing printed circuit boards. ● The triple guard structure uses centrifugal force to eliminate cutting chips, providing excellent dust prevention. ● By replacing the collet chuck attached to the tip, you can use tools with shaft diameters of φ1.0 to φ3.175. ● The tools with shafts can be attached and detached with one touch by rotating the attachment ring with the lever. ● Equipped with a quick change function, the attachment and motor can be quickly replaced. ● By setting it on an automatic machine, you can divide and process printed circuit boards. ● When setting it on an automatic machine, you can control it from an external device using the foot switch connector. Applications: ● Attachment for the precision electric micro grinder E-FORCE. ● Recommended work: Dividing and processing printed circuit boards. Specifications: ● No-load speed (min-1): 1000-40000 ● Outer diameter (mm): 29.8 ● Total length (mm): 86.2 ● Chuck inner diameter (mm): 3 ● Compatible motors: DMT40, DMT20 ● Compatible collets (mm): φ1.0-φ3.175 Set contents/accessories: ● Collet chuck φ3.0mm ● Spanner
