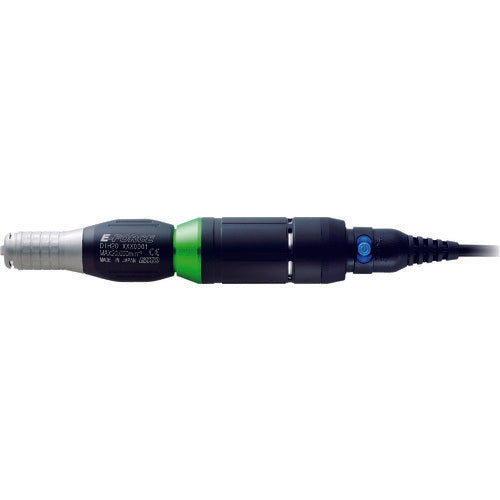

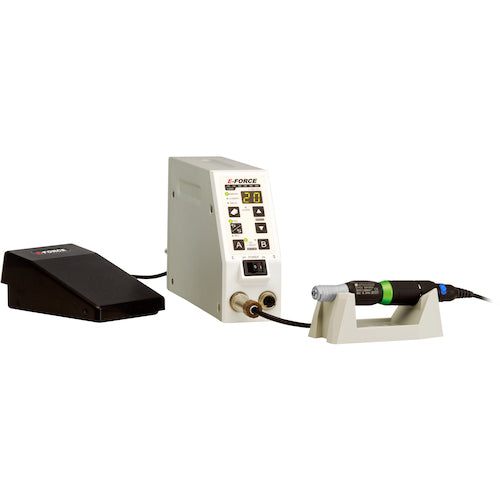

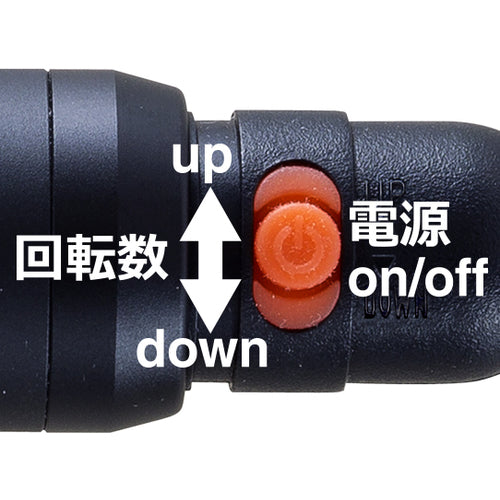

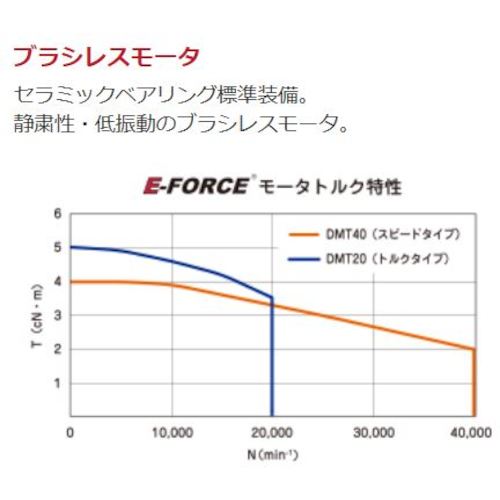

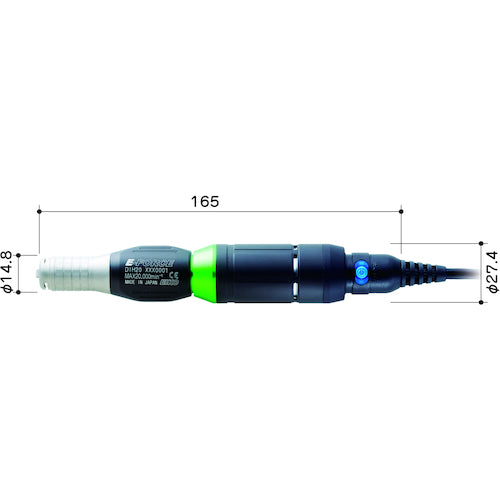

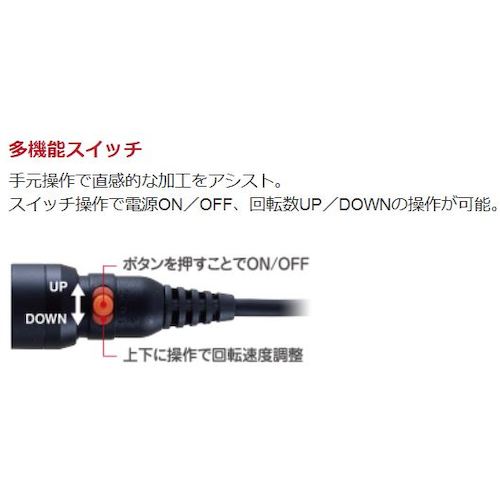

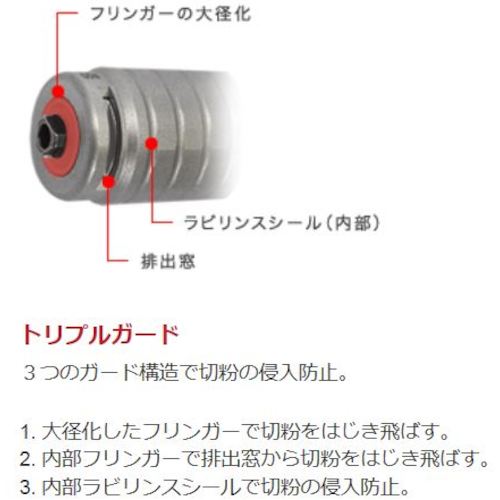

Catalog number: DIH20-3 Features: ●The body has a slim shape that supports delicate finishing processing. ●The triple guard structure uses centrifugal force to eliminate cutting chips, providing excellent dust protection. ●By replacing the collet chuck attached to the tip, you can use tools with shaft diameters of φ1.0 to Φ3.175. ●Tools with shafts can be attached and detached with one touch by rotating the attachment ring. ●Uses a brushless motor with low vibration and excellent quietness, making it maintenance-free. ●Equipped with a high-torque motor that allows stable work from low to high speeds. ●Equipped with a multi-function switch that allows you to turn the power on/off and increase/decrease the rotation speed by operating the switch. Uses: ● Integrated handpiece for precision electric micro grinder E-FORCE ● Recommended operations: drilling, chamfering, deburring, cutting Specifications: ● No-load speed (min-1): 1000-20000 ● Outer diameter (mm): 27.4 ● Overall length (mm): 165 ● Chuck inner diameter (mm): 3 ● Maximum output (W): 73 ● Maximum torque (cN・m): 5.0 ● Compatible collet chuck: φ1.0 to φ3.175 Set contents/accessories: ● Collet chuck φ3.0mm ● Spanner
