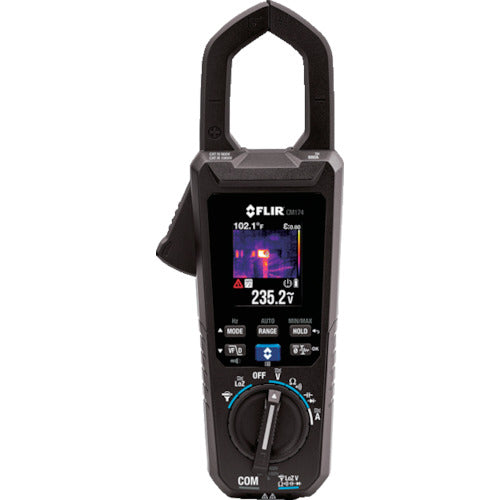

FLIR CM174 Thermal Image Clamp Meter CM174 1 unit

Catalog number: CM174 Features: ●The world's first clamp meter with an integrated thermal image camera. ●Thermal imaging enables efficient inspection of areas with high thermal load. Specifications: ●DC current (A): 600 ●AC current (A): 600 ●DC voltage (V): 1000 ●AC voltage (V): 1000 ●Resistance (Ω): 6000 ●Detection method: True RMS (RMS) ●Power supply (V): 4 AAA batteries (included) ●Power supply: 4 AAA batteries (included) ●Width (mm): 89 ●Depth (mm): 43 ●Height (mm): 241 ●Maximum measurement conductor diameter (mm): 35 ●Maximum display: 6000 counts ●Expandable up to 3000A with flex probe ●Equipped with advanced measurement functions such as TRMS Loz VFD mode inrush current and smart diode Material/Finish: ●PC-ABS ●TPU Set contents/Accessories: ●4 AAA batteries ●Premium silicone test leads ●User instructions (CD) Caution: ●Do not look directly at the sun with the thermal image section.
