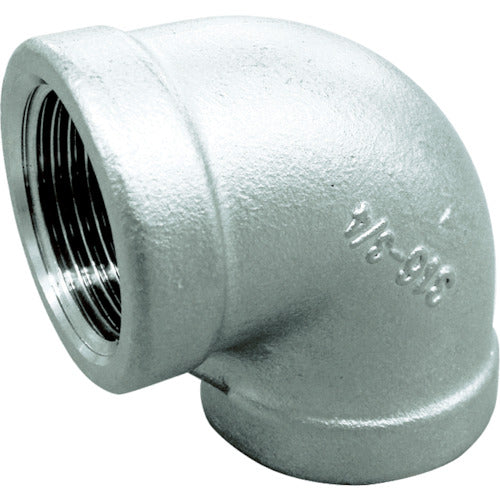

FLOBAL Threaded Pipe Fitting Elbow (Stainless Steel 14A) 04115402 Nominal Diameter (A) 8/Nominal Diameter (B) 1/4 VL-S14-02 1 pc

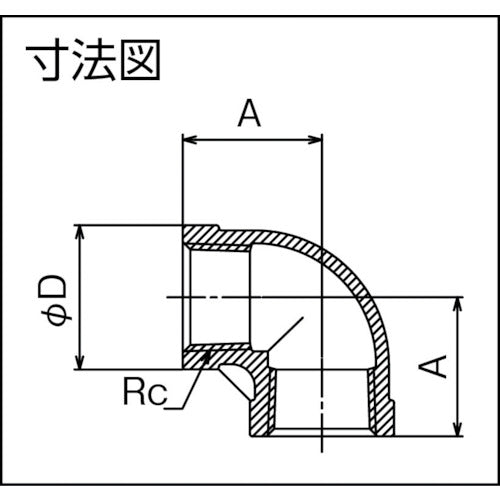

Catalog number: VL-S14-02 Features: ●Compatible with stainless steel piping. ●Widely used in buildings, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the main player in piping. ●This product has been developed as an easier-to-use fitting by further upgrading the conventional threaded fitting. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 8 ●Nominal diameter B: 1/4 ●A (mm): 19 ●D (mm): 22 ●Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS14A (SUS316))
