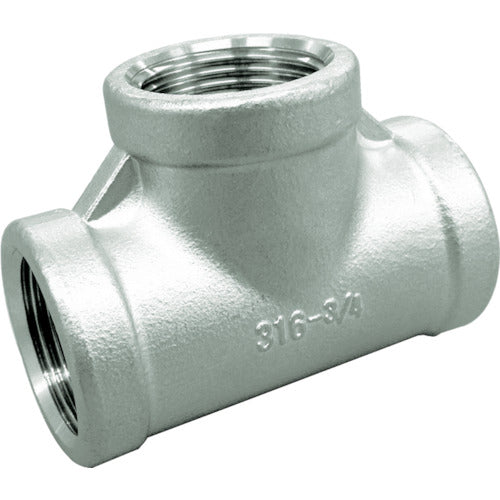

FLOBAL Threaded Pipe Fitting Tee (Stainless Steel 14A) 04115605 Nominal Size (A) 20/Nominal Size (B) 3/4 VT-S14-06 1 pc

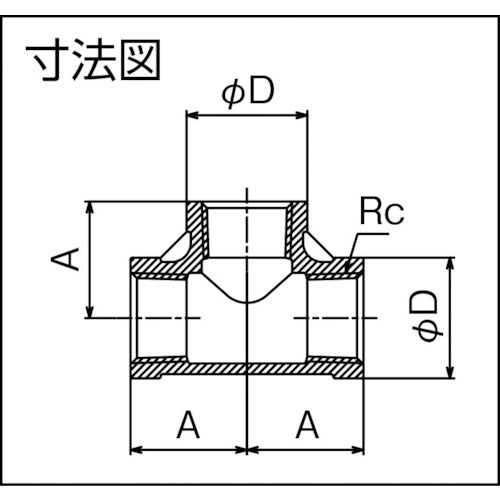

Catalog number: VT-S14-06 Features: ●Compatible with stainless steel piping. ●Widely used in construction, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the mainstay of piping. ●This product is an upgrade over conventional threaded fittings and has been developed as a fitting that is easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●A (mm): 32 ●D (mm): 34 ●Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS14A (SUS316))
