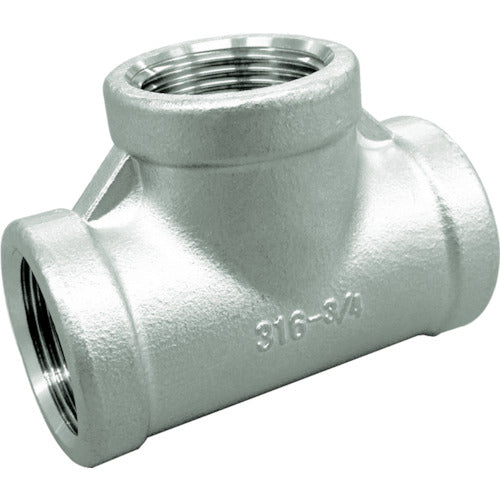

FLOBAL Threaded Pipe Fitting Tee (Stainless Steel 14A) 04115606 Nominal Diameter (A) 25 / Nominal Diameter (B) 1 VT-S14-08 1 pc

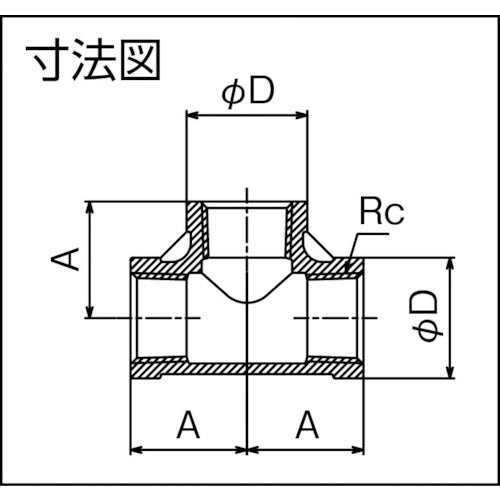

Catalog number: VT-S14-08 Features: ● Compatible with stainless steel piping. ● Widely used in buildings, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the mainstay of piping. ● This product has been developed as an easier-to-use fitting by further upgrading the conventional threaded fitting. Applications: ● For steam, air, gas, and oil. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● A (mm): 38 ● D (mm): 43 ● Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ● Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ● Stainless steel (SCS14A (SUS316))
