FLOBAL Threaded Pipe Fitting Union (Stainless Steel 14A) 04115801 Nominal Diameter (A) 6/Nominal Diameter (B) 1/8 VU-S14-01 1 pc

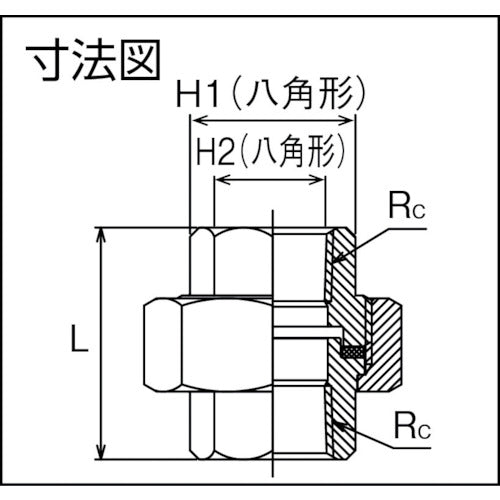

Catalog number: VU-S14-01 Features: ●Compatible with stainless steel piping. ●Widely used in buildings, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the main player in piping. ●This product has been developed as an easier-to-use fitting by further upgrading the conventional threaded fitting. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 6 ●Nominal diameter B: 1/8 ●L (mm): 30.5 ●H1 (mm): 15 ●H2 (mm): 25 ●Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS14A (SUS316))
