FLOBAL Concentric Reducer (concentric) S10S 09100176 B-RC1-10S-40AX20A 1 piece

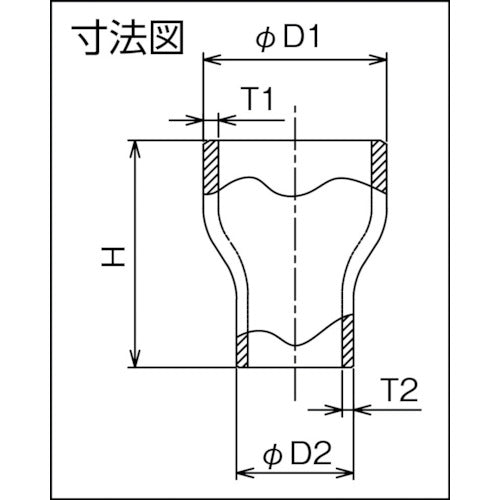

Catalog number: B-RC1-10S-40AX20A Features: ●Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ●Stainless steel butt welded pipe fittings Applications: ●Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ●Nominal diameter A: 40 x 20 ●Nominal diameter B: 1 1/2 x 3/4 ●H (mm): 63.5 ●Outer diameter D1 x D2 (mm): 48.0 x 27.2 ●T2 (mm): 2.1 ●T1 (mm): 2.8 ●JIS B2313 standard product Material/Finish: ●Stainless steel (SUS304W)
