FLOBAL Concentric Reducer (Concentric) S10S 09100179 B-RC1-10S-50AX25A 1 pc

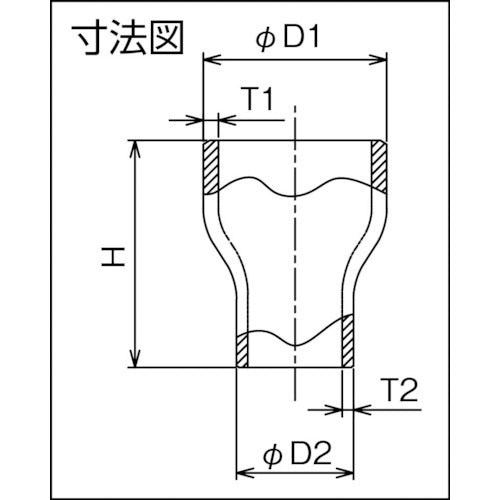

Catalog number: B-RC1-10S-50AX25A Features: ●Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ●Stainless steel butt welded pipe fittings Applications: ●Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ●Nominal diameter A: 50 x 25 ●Nominal diameter B: 2 x 1 ●H (mm): 76.2 ●Outer diameter D1 x D2 (mm): 60.5 x 34.0 ●T1 (mm): 2.8 ●T2 (mm): 2.8 ●JIS B2313 standard product Material/Finish: ●Stainless steel (SUS304W)
