FLOBAL Concentric Reducer (Concentric) S10S 09100180 B-RC1-10S-50AX32A 1 pc

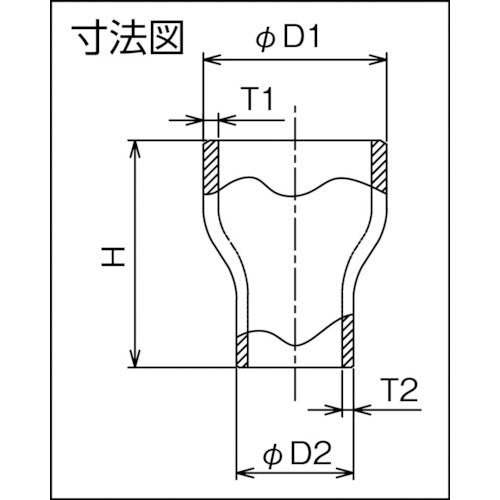

Catalog number: B-RC1-10S-50AX32A Features: ● Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ● Stainless steel butt welded pipe fittings Applications: ● Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ● Nominal diameter A: 50 x 32 ● Nominal diameter B: 2 x 1 1/4 ● H (mm): 76.2 ● T1 (mm): 2.8 ● Outer diameter D1 x D2 (mm): 60.5 x 42.7 ● T2 (mm): 2.8 ● JIS B2313 standard product Material/Finish: ● Stainless steel (SUS304W)
