FLOBAL Concentric Reducer (Concentric) S10S 09100192 B-RC1-10S-100AX65A 1 pc

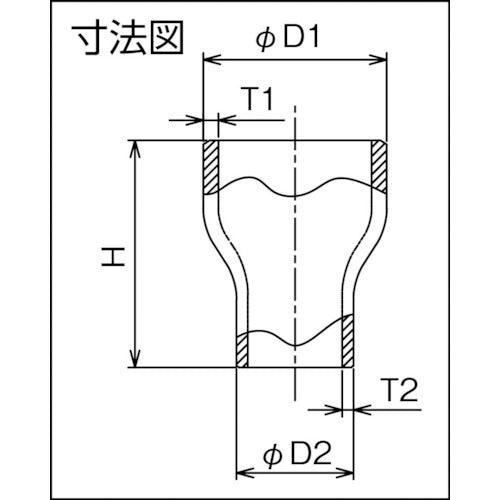

Catalog number: B-RC1-10S-100AX65A Features: ●Manufactured using cold bending, hydraulic forming, and sheet drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ●Stainless steel butt welded pipe fittings Applications: ●Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ●Nominal diameter A: 100 x 65 ●Nominal diameter B: 4 x 2 1/2 ●H (mm): 101.6 ●Outer diameter D1 x D2 (mm): 114.3 x 76.3 ●T1 (mm): 3.0 ●T2 (mm): 3.0 ●JIS B2313 standard product Material/Finish: ●Stainless steel (SUS304W)
