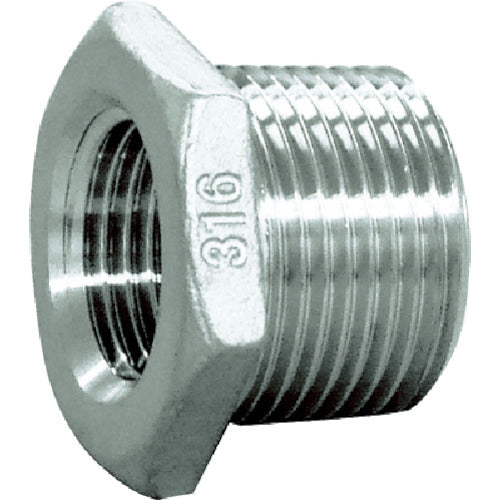

FLOBAL Bushing (SCS14A) 04115908 VBU-S14-0804 1 piece

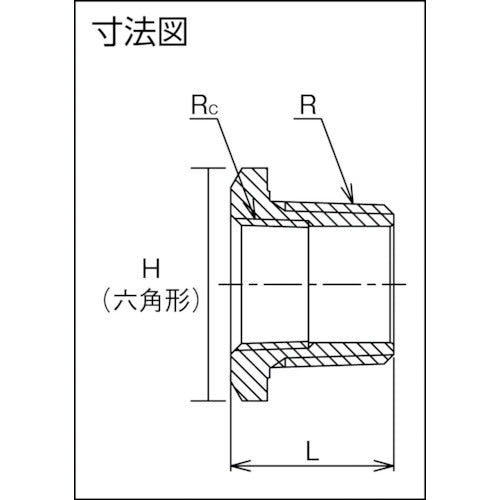

Catalog number: VBU-S14-0804 Features: ●Compatible with stainless steel piping. ●Widely used in buildings, plants, nuclear reactors, automobiles, aircraft, etc., this product can be called the main player in piping. ●This product has been developed as an easier-to-use fitting by further upgrading the conventional threaded fitting. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 25 x 15 ●Nominal diameter B: 1 x 1/2 ●L (mm): 27 ●D (mm): 27 ●H (mm): 38 ●Applicable standards: Compliant with JIS B2301, JIS B2302, JIS B2308, and JIS B 0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS14A (SUS316))
